Description

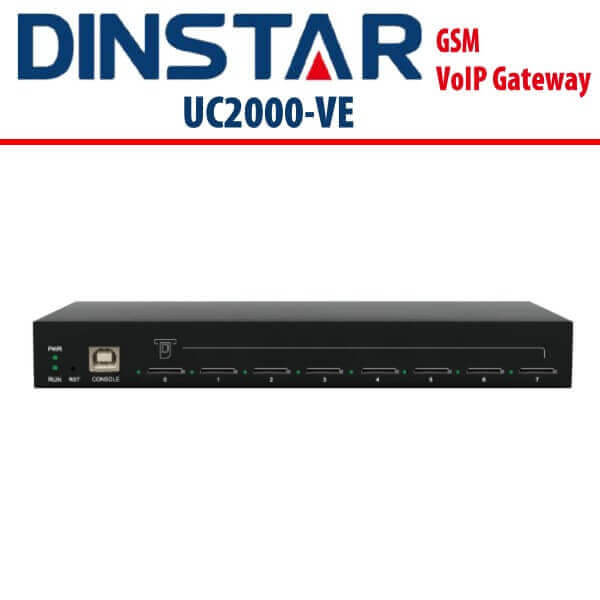

Dinstar UC2000-VE GSM/WCDMA/LTE VoIP Gateway Nigeria
The Dinstar UC2000-VE Nigeria is a versatile 4 or 8-channel GSM/3G/4G VoIP Gateway designed with a compact, reliable hardware platform that ensures smooth and seamless communication between mobile and VoIP networks for both voice and SMS transmission. Featuring built-in GSM, WCDMA, and LTE connectivity, along with full SIP protocol support compatible with most mainstream VoIP platforms, this gateway is an ideal solution for businesses, multi-branch enterprises, call termination services, and regions with limited fixed-line infrastructure, such as rural areas, helping significantly reduce telecommunication expenses while improving communication efficiency. Operating as a standalone device, it also offers the flexibility of remote SIM card management when integrated with Dinstar’s SIMBank and SIMCloud, making it highly scalable and convenient for dynamic telephony environments.
Features
4/8-channel VoIP GSM/3G/4G Gateway
- GSM/WCDMA/LTE support
- Voice over LTE (VoLTE)
- Hot Swappable SIM Cards
- Compatible with mainstream VoIP platform
- Mobility Extension, never miss a call
- SMS sending & receiving, SMS API
- Credit Limit management
- Auto CLIP
Applications
- Mobile connectivity for SME IP phone system
- Mobile trunking for Multi-site offices
- GSM/3G as voice backup trunks
- Call termination for service providers
- Land-line replacement for rural area
- Bulk SMS service
- Call Center / Contact Center Solution
Easy Management & Automatic Configuration
- Intuitive Web interface
- Remote SIMs management with Dinstar SIMBank & SIMCloud
- Configuration Backup & Restore
- Advanced Debug tools
Technical Highlights
- 4/8 SIM slot, 4/8 antennas
- Signaling & RTP Encryption
- Built-in antennas combiner (Optional)
- SMPP for SMS
- GSM: 850/900/1800/1900Mhz
- HTTP API for SMS
- WCDMA: 900/2100Mhz or 850/1900Mhz
- Polarity Reversal
- LTE: Multiple frequency choices for different countries
- PIN Management
- SIP v2.0, RFC3261
- SMS/USSD
- Codecs: G.711A/U , G.723.1, G.729AB
- SMS to Email, Email to SMS
- Echo Cancellation
- Call Waiting/Call Back
- DTMF: RFC2833, SIP Info
- Call Forward
- Programmable Gain Control
- GSM Audio Coding: HR, FR,EFR, AMR_FR,AMR_HR
- Mobile to VoIP, VoIP to Mobile
- HTTPS/HTTP Web Configuration
- SIP Trunk and Trunk Group
- Configure Backup/Restore
- Port and Port Group
- Firmware Upgrade by HTTP/TFTP
- Caller/Called Number Manipulation
- CDR(10000 Lines Storage Locally)
- SIP Codes Mapping
- Syslog/Filelog
- White/Black List
- Traffic statistics: TCP,UDP,RTP
- PSTN/VoIP Hotline
- VoIP Call Statistics
- Abnormal Call Monitor
- PSTN Call statistics: ASR,ACD,PDD
- Call Minutes Limitation
- IVR Customization
- Balance Check
- Auto Provisioning
- Random Call Interval
- SIP/RTP/PCM Capture
- Auto CLIP
- Work with Dinstar SIMCloud/SIMBank (Optional)
