Fanvil A10 Nigeria

The Fanvil A10 Nigeria SIP mini intercoms are designed for indoor security, intercom, and broadcasting needs with a sleek, modern design and advanced features.

Description

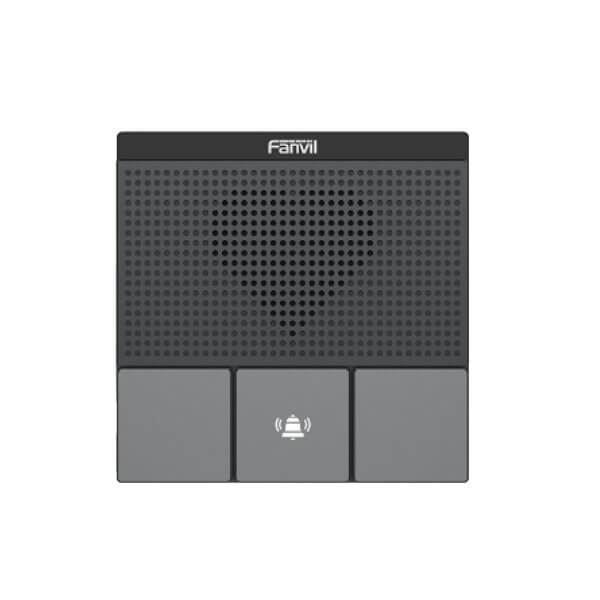

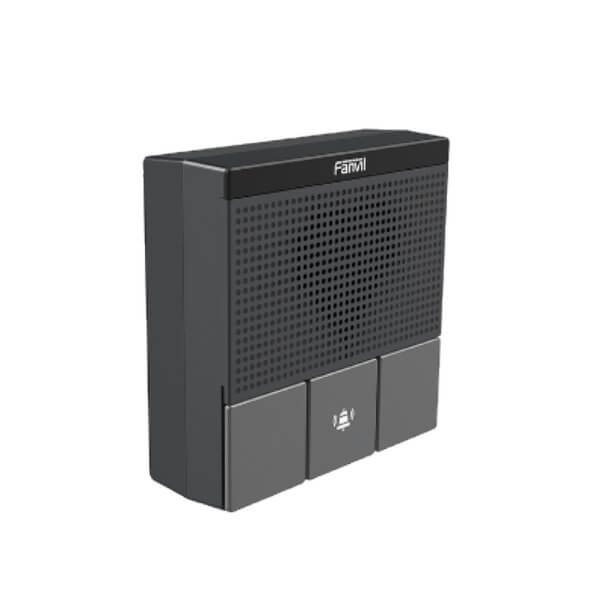

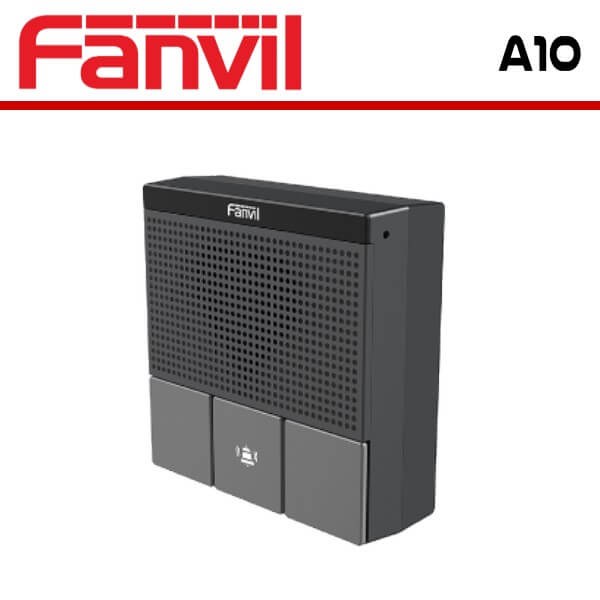

Fanvil A10 SIP Intercom Nigeria

The Fanvil A10 Nigeria SIP mini intercoms are designed for indoor security, intercom, and broadcasting needs with a sleek, modern design and advanced features. Fanvil A10 Nigeria support 2 SIP accounts, 3 detachable function buttons, and PoE power supply for seamless communication. The A10 series offers HD audio, IP54 waterproof and dustproof rating, and 2.4G & 5G Wi-Fi connectivity (A10W/A10W-E models) for excellent communication quality. They are versatile, supporting wall mountable (A10/A10W) and standard 86 box embedded installations (A10-E/A10W-E) for various indoor applications. Ideal for residential complexes, offices, and commercial establishments, the Fanvil A10 SIP mini intercoms ensure reliable modern communication and enhanced security.

Highlights

  • Features 2 SIP accounts and 3 detachable function buttons
  • Built-in 2.4G & 5G Wi-Fi (A10W/A10W-E)
  • IP54 waterproof and dustproof
  • Support HD audio with codec G.722 and Opus
  • Built-in 2W speaker and Acoustic Echo Canceller (AEC)
  • Built-in 1 short circuit input/output interface
  • Support PoE power supply
  • Support standard 86 box embedded (A10-E/A10W-E) and wall mountable(A10/A10W) installation

Features

Generic

  • 2 SIP Lines
  • Auto answer
  • HD Voice
  • PoE Enabled
  • Built-in 2.4G & 5G Wi-Fi(A10W/A10W-E)
  • Intercom function
  • External Power Supply (Optional)

Intercom Function

  • Support customized DSS keys
  • Network Time Synchronization
  • Built-in Wi-Fi (A10W/A10W-E)
    • 4G, 802.11 b/g/n
    • 5G, 11 a/n
  • Action URL / Active URL

Audio

  • Narrowband Codec : 711a/u, G.729AB, G.723.1, G.726, iLBC
  • Wideband Codec : 722, Opus
  • Duplex intercom with Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

  • Physical : 10/100 Mbps Ethernet
  • Wi-Fi : 4G&5G (A10W/A10W-E)
  • IP Mode : IPv4/IPv6/IPv4&IPv6
  • IP Configuration : Static / DHCP / PPPoE
  • Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
  • VPN : L2TP / OpenVPN
  • VLAN
  • LLDP
  • QoS

Protocols

  • 0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • IPv6
  • LLDP
  • PPPoE
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Physical Specifications

  • A10 Series : 3 DSS button;
  • Status indicator light :  Fast flashing red (registration failed、network anomaly)、Slow flashing green(call)
  • 1 RJ45 port
  • 1 short circuit input interface
  • 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
  • Power : DC12V/1A or POE
  • Power Consumption (Adapter):
    • 94W~1.98W (A10/A10-E)
    • 42W~2.35W (A10W/A10W-E)
  • Power Consumption (PoE):
    • 48W~2.37W (A10/A10-E)
    • 99W~3.05W (A10W/A10W-E)
  • Housing material : ABS
  • Installation : Indoor installation
    • Standard 86 Box Embedded(A10-E/A10W-E)
    • Wall Mountable(A10/A10W)
  • Color : Gunmetal
  • working temperature : -10 ~50 °C
  • Storage temperature : -20 ~ 50 °C
  • Relative humidity : 10% – 90%
  • Qty/CTN:20 PCS
  • W/CTN : 3.41kg
  • W/CTN : 3.6kg
  • Equipment Dimension :
    • 56 x 87.56 x 30mm (Wall Mountable)
    • 56 x 87.56 x 21.5mm ( 86 Box Embedded)
  • Packing Dimension : 95x106x40mm
  • Outer CTN Dimension : 224x220x210mm(20 PCS)

Datasheet Download
