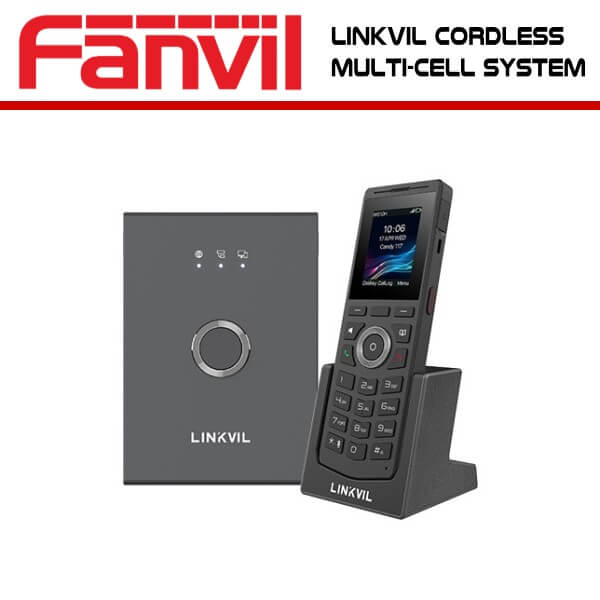

Fanvil LINKVIL Cordless Multi-cell System Nigeria

The Fanvil LINKVIL Cordless Multi-cell System Nigeria delivers a powerful and scalable wireless communication platform, ideal for large-scale enterprise deployments. At its core is the W710H Manager unit, capable of managing up to 20 base stations and connecting with as many as 300 W610H cordless handsets. Engineered for extensive area coverage, the system supports 200 simultaneous calls and handles up to 300 SIP accounts across multiple servers, making it well-suited for corporate complexes, medical institutions, retail centers, and industrial operations. The W710H base station accommodates both single-cell and multi-cell deployments, enabling smooth handovers and consistent roaming. It provides indoor coverage of up to 100 meters and outdoor reach of up to 700 meters (based on U.S. standards). Additional functionalities include access to XML/LDAP/remote phonebooks, storage for 20,000 call logs, and auto-provisioning through FTP, TFTP, HTTP, and TR-069. The system is further enhanced with support for IPv6, VLAN tagging, and built-in VPN capabilities.

Category:

Description

Fanvil LINKVIL Cordless Multi-cell System Nigeria

The Fanvil LINKVIL Cordless Multi-cell System Nigeria delivers a powerful and scalable wireless communication platform, ideal for large-scale enterprise deployments. At its core is the W710H Manager unit, capable of managing up to 20 base stations and connecting with as many as 300 W610H cordless handsets. Engineered for extensive area coverage, the system supports 200 simultaneous calls and handles up to 300 SIP accounts across multiple servers, making it well-suited for corporate complexes, medical institutions, retail centers, and industrial operations. The W710H base station accommodates both single-cell and multi-cell deployments, enabling smooth handovers and consistent roaming. It provides indoor coverage of up to 100 meters and outdoor reach of up to 700 meters (based on U.S. standards). Additional functionalities include access to XML/LDAP/remote phonebooks, storage for 20,000 call logs, and auto-provisioning through FTP, TFTP, HTTP, and TR-069. The system is further enhanced with support for IPv6, VLAN tagging, and built-in VPN capabilities.

Accompanying the base station, the W610H cordless handset features a vibrant 2.0-inch 240×320 color screen, Bluetooth 5.0 connectivity, a 3.5mm headset jack, and a powerful 1900mAh battery providing up to 8 hours of talk time and 160 hours of standby. Designed for durability and performance, it supports HD audio, multiple voice codecs like Opus, G.722, and G.729, programmable DSS keys, a PTT (push-to-talk) button, and a multilingual user interface. With a drop resistance rating of up to 1.8 meters, the handset is built for demanding use cases. Both the base station and handset are internationally certified with CE, FCC, UKCA, and RoHS standards, ensuring reliability and global compliance. The Fanvil LINKVIL Cordless Multi-cell System Nigeria system is engineered for smooth roaming between base stations and is equipped with powerful security and encryption technologies such as WPA2-PSK and SRTP, making it a professional-grade, future-proof solution for dynamic enterprise communication environments.

Product Highlights:

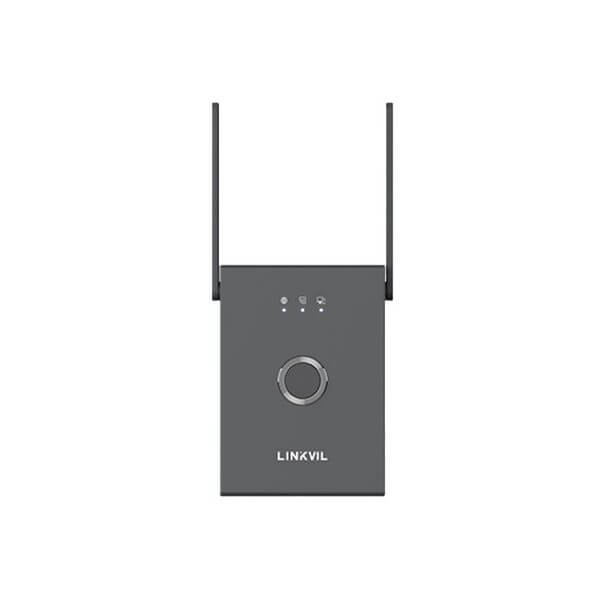

W710H Base Station (Multi‑cell System)

  • Supports both single-cell and multi-cell modes via W710H Manager
  • Multi-cell supports:
    • Up to 20 base stations
    • Up to 300 terminals (handsets)
    • Up to 200 simultaneous calls
    • Up to 300 SIP accounts/extensions
  • Roaming coverage:
    • Indoor: up to 100 m
    • Outdoor: up to 700 m
  • Supports XML/LDAP/Remote phonebook (up to 1,000 contacts per terminal), call logs (20,000 entries)
  • Wireless encryption: WPA2‑PSK
  • Network protocols: IPv4/6, VLAN, 802.1x, VPN, LLDP, CDP, etc.
  • Deployment tools: auto-provision via FTP/TFTP/HTTP/SIP‑PnP/TR‑069; web management interface
  • Hardware:
    • 10/100 Mbps Ethernet, PoE support
    • Operating –10 °C to +45 °C, storage –20 °C to +60 °C
    • Certifications: CE, FCC, RoHS, etc.

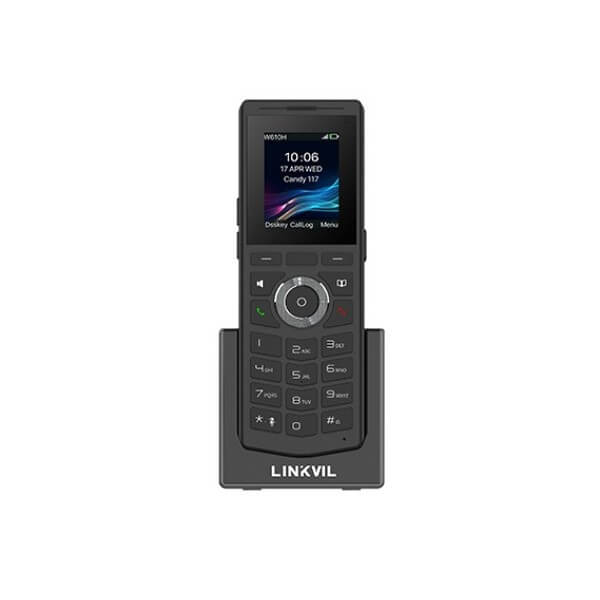

W610H Handset

  • 2.0″ 240 × 320 color screen
  • Bluetooth 5.0 for headsets + 3.5 mm jack
  • 1,900 mAh rechargeable battery
    • Up to 8 hours talk, 160 hours standby
  • HD voice, noise reduction, incoming vibration
  • Supports:
    • 4 SIP lines, 1 internal extension
    • 16 programmable DSS keys, 1 PTT button
  • Codec support: G.711, G.729 variants, iLBC, G.722, Opus
  • Networking/protocols: 802.11ah (Wi‑Fi), WPA2‑PSK, SRTP, STUN, DHCP, HTTP/S, etc.
  • Physical:
    • Drop tested to 1.8 m
    • Size: 156 × 53 × 17.7 mm; weight: 145 g
  • Misc:
    • Supports 1,000 contacts, 600 call logs, SMS, voicemail, speed dial, DND, intercom, 3‑way conference
    • Multi-language UI
    • Certifications: CE/FCC/UKCA, RoHS, etc.
