Description

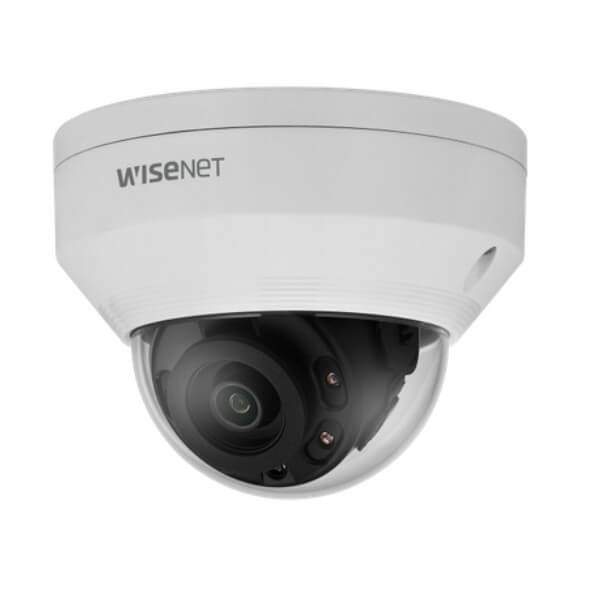

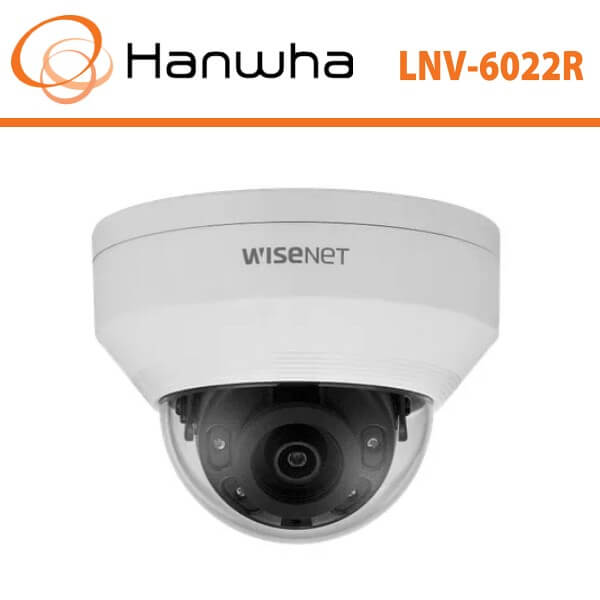

Hanwha LNV6022R Vandal Dome Camera
The Hanwha LNV6022R is a state-of-the-art vandal-resistant dome camera designed to deliver exceptional surveillance performance in demanding environments. Built with advanced imaging technology, intelligent security analytics, and a rugged design, it provides a reliable and high-quality solution for diverse security applications. Whether deployed in commercial properties, transportation hubs, educational institutions, or retail stores, the LNV6022R ensures round-the-clock monitoring and threat detection.
Superior Night Vision with Smart IR Technology
Equipped with powerful infrared (IR) LEDs, the Hanwha LNV6022R ensures clear and detailed night-time surveillance with an effective range of up to 25 meters. Its Smart IR technology dynamically adjusts IR intensity to prevent overexposure, delivering balanced illumination even in complete darkness. With 120dB Wide Dynamic Range (WDR), the camera captures sharp and high-contrast images, making it particularly useful in areas with varying light conditions, such as entrances, exits, and large windows. This ensures clear visibility in both bright and shadowed areas, enhancing security monitoring in challenging lighting environments.
Rugged and Durable for Harsh Conditions
Designed for durability, the LNV6022R is IP66-rated weatherproof and IK10 vandal-resistant, ensuring it can withstand extreme weather conditions and physical impact. These robust protective features make it ideal for outdoor surveillance, particularly in locations prone to vandalism, harsh weather, or high-security risks. From public transport stations to commercial facilities and educational institutions, the LNV6022R provides a reliable surveillance solution that maintains operational efficiency under tough conditions.
Fixed Lens for Optimal Coverage and High-Resolution Monitoring
The LNV6022R features a 4mm fixed lens with an 87° horizontal field of view, offering a perfect balance between coverage and detail clarity. This makes it an ideal solution for monitoring corridors, parking lots, entrances, and other critical security areas where a wide but focused view is essential. Unlike adjustable lenses, the fixed-lens configuration provides consistent high-quality imaging without requiring frequent recalibration, ensuring long-term reliability in security applications.
Advanced Intelligent Video Analytics for Proactive Security
The Hanwha LNV6022R is equipped with intelligent video analytics, allowing for automated security monitoring and immediate alerts when unusual activity is detected. These AI-driven analytics help security teams respond quickly and effectively. Key intelligent detection features include:
-
Motion Detection – Identifies and alerts on movement, reducing the risk of unauthorized access.
-
Tampering Detection – Sends alerts when the camera is obstructed or manipulated.
-
Intrusion Detection – Triggers alerts when unauthorized individuals enter restricted zones.
These intelligent features enhance security efficiency, minimize false alarms, and support real-time threat assessment, ensuring a proactive approach to security management.
Optimized Bandwidth and Storage Efficiency with H.265 Compression
To reduce storage consumption and optimize bandwidth usage, the Hanwha LNV6022R supports the latest video compression standards, including H.265, H.264, and MJPEG. This ensures high-quality video streaming while minimizing data usage, making it a cost-effective solution for large-scale surveillance systems. Whether used in high-traffic areas or for 24/7 monitoring, the LNV6022R delivers efficient video transmission without compromising performance.
Seamless Edge Storage for Uninterrupted Surveillance
For added reliability, the LNV6022R features a built-in micro SD/SDHC/SDXC card slot, allowing for local video storage directly on the device. This ensures continuous surveillance even in the event of network failures, providing fail-safe recording capabilities to capture critical footage when needed. Edge storage is particularly beneficial for locations where network connectivity is inconsistent, ensuring that security footage remains accessible at all times.
Why Choose the Hanwha LNV6022R?
- Superior Night Vision – Smart IR with up to 25m range for clear night-time surveillance.
- Rugged Durability – IP66 weatherproof and IK10 vandal-resistant housing.
- Intelligent Analytics – Motion, tampering, and intrusion detection for real-time security monitoring.
- Optimized Storage – H.265, H.264, and MJPEG compression for bandwidth efficiency.
- Reliable Edge Storage – MicroSD support for uninterrupted local recording.
The Hanwha LNV6022R is the ultimate security camera solution for businesses, public spaces, and high-risk areas, ensuring seamless surveillance, real-time threat detection, and long-term reliability. Its advanced features, combined with intelligent analytics and superior durability, make it an ideal choice for organizations looking to enhance their security infrastructure.
Key Features
- Maximum 2MP resolution
- Color: 0.03Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on)
- 4.0mm fixed focal
- Maximum 30fps@2MP all resolutions (H.264)
- H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Tampering, Motion detection
- Micro SD/SDHC memory slot (32GB), PoE
- Hallway view (90°/270°), WiseStreamII support
- IR viewable length 30m(98.43ft)
- IP66, IK10 support
SPECIFICATION
| Video | |
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.264: Max. 30fps/25fps(60Hz/50Hz)(WDR off) H.264: Max. 15fps/12fps(60Hz/50Hz)(WDR on) MJPEG: Max. 10fps(@2MP Max. 2fps) |
| Min. Illumination | Color: 0.03Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.0mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 85° / V: 46° / D: 99° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~67° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, rectangler zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering |
| Alarm Triggers | Analytics |
| Alarm Events | When alarm trigger occurred – File upload(image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 30m(98.43ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.264: Main/Baseline/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch |
| Edge Storage | Micro SD/SDHC 1slot 32GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F~+131°F) / 0~90% RH * Start up should be done at above -20°C(-4°F) |
| Storage Temperature / Humidity | -30°C +55°C(-22°F ~ +131°F) / 0~90% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | Max 6.4W, Typical 5.0W |
| Mechanical | |
| Color / Material | White / Plastic, Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø120.3×91.7mm(ø4.74×3.61″), 410g |
| Hanging Mount (Dome) | SBP-122HMW |
| Backbox | SBV-120GW |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 42.4m(139.17ft) |
| Observe (63PPM/ 19PPF) | 17.0m(55.67ft) |
| Recognize (125PPM/ 38PPF) | 8.5m(27.83ft) |
| Identify (250PPM/ 76PPF) | 4.2m(13.92ft) |
