Description

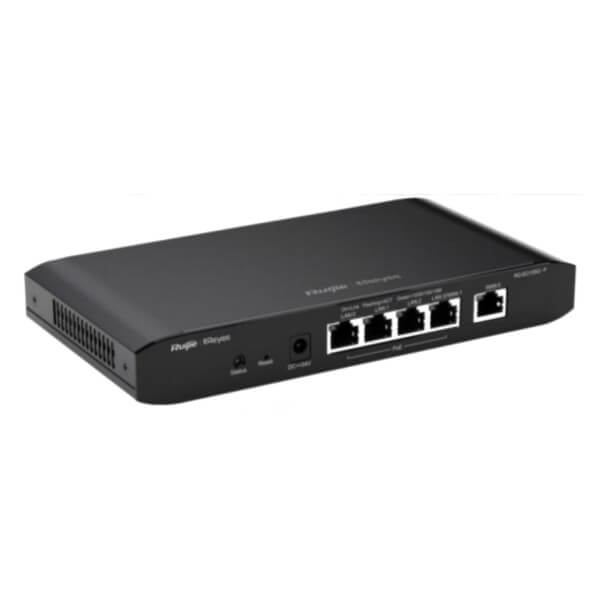

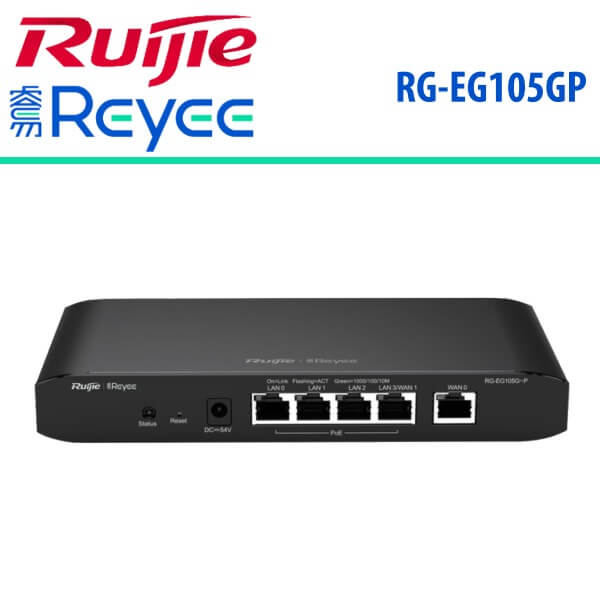

Ruijie rg-eg105gp router nigeria

The ruijie rg-eg105gp nigeria is a cloud-managed router with up to x2 WAN ports, 4x 802.3af/at PoE ports and built-in network controller to centrally manage Reyee access points and managed switches. The router also offers a unified configuration with advanced features such as load balancing, traffic audit, behavior management, flow control, VPN and much more. ruijie rg-eg105gp nigeria supports Ruijie’s smart networking feature, which with Ruijie’s free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

The ruijie rg-eg105gp nigeria Router is a cloud managed router designed for villas and smart home, restaurant, small offices, homestay hotel. It is affordable, small and easy to use, but at the same time comes with 500Mbps – 1Gbps bandwidth and supporting up to 200 terminals. RG-EG series can perform per-port VLAN configuration to achieve port isolation, and integrate with smart flow control to achieve comprehensive network planning and perform local and remote network diagnosis

Features

User friendly configuration, easy to learn
Support unbreakable and load balancing multi-WAN internet
Easy to block unwanted applications with automatically updated library
Customize portal page, what you see is what you get
Secure access your internal device remote

Specifications

Model	RG-EG105G V2	RG-EG105G-P	RG-EG210G-P
Basic specifications
Fixed ports	5 10/100/1000M Base-T port supporting up to 2 WAN ports (Default : 1 WAN port，4 LAN ports LAN3 can be switched to WAN1 port）	5 10/100/1000M Base-T ports supporting up to 2 WAN ports (Default : 1 WAN port，4 LAN ports LAN3 can be switched to WAN1 port）	10 10/100/1000M Base-T ports supporting up to 4 WAN ports (Default : 1 WAN port and 9 LAN ports LAN8, LAN7 and LAN6 can be switched to WAN ports）
RAM	128MB	128MB	256MB
Flash	16MB	16MB	16MB
Maximum number of clients	Up to 100 concurrent clients	Up to 100 concurrent clients	Up to 200 concurrent clients
Recommended bandwidth	600M asymmetric bandwidth (flow control disabled) 500M asymmetric bandwidth (flow control enabled)	500M asymmetric bandwidth (flow control disabled) 300M asymmetric bandwidth (flow control enabled)	600M asymmetric bandwidth (flow control disabled) 500M asymmetric bandwidth (flow control enabled)
Local power supply	Support 220V AC local power supply
Power consumption	<6W	<60W (With PoE load)	<80W
Basic network features
Network access	PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers
Routing	Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams
Security	ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping
Other protocols	DHCP Server, DHCP Client, DHCP Option43 / 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS
Gateway
Application recognition	Built-in self-developed application signature database to identify applications Support free upgrades
Flow control	Support custom flow control policies, IP-based automatic bandwidth assignment
Traffic audit	Real-time traffic audit, IP traffic visualization
Behavior management	Time-based and IP policy-based access control, website filtering
VPN	IPsec VPN (8 tunnels) server and client, L2TP, PPTP
Authentication	Marketing authentication : WiFiDog (SMS authentication and one-click authentication) Local authentication : password authentication, QR code authentication, voucher authentication
Wireless management
Management capacity	In AC mode, the maximum management capacity is 300 In gateway mode, the maximum management capacity is 32	In AC mode, the maximum management capacity is 300 In gateway mode, the maximum management capacity is 32	In AC mode, the maximum management capacity is 500 In gateway mode, the maximum management capacity is 150
AP management	Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist
Roaming	Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track
Switch management
Management capacity	Maximum manageable cloud managed switches : 128
Port management	Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search
Status display	Port statistics, monitoring information, cable detection, VLAN configuration, MAC list
Upgrademanagement	Per-device upgrade, batch upgrade
Value added features
Featured solutions	Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution
Management	Eweb and Ruijie Cloud
Physical specifications
Dimensions	206.5×108.5×28 (mm)	206.5×108.5×28 (mm)	202×107×28 (mm)
Weight	0.84kg	0.84kg	1.5kg
Temperature	Operating temperature : 0 ~ 40 ℃ Storage temperature : -10 ℃ ~ 70 ℃	Operating temperature : 0 ~ 40 ℃ Storage temperature : -10 ℃ ~ 70 ℃	Operating temperature : 0 ~ 40 ℃ Storage temperature : -10 ℃ ~ 70 ℃
Humidity	Operating humidity : 10% ~ 90% (non-condensing) Storage humidity : 5% ~ 95% (non-condensing)	Operating humidity : 10% ~ 90% (non-condensing) Storage humidity : 5% ~ 95% (non-condensing)	Operating humidity : 10% ~ 90% (non-condensing) Storage humidity : 5% ~ 95% (non-condensing)
