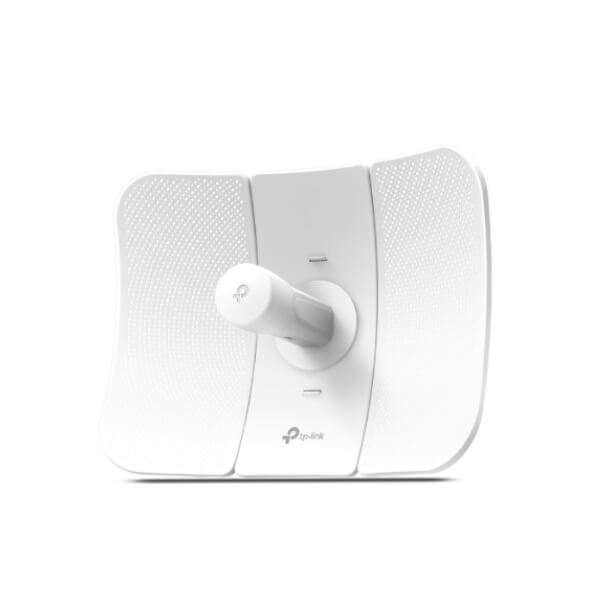

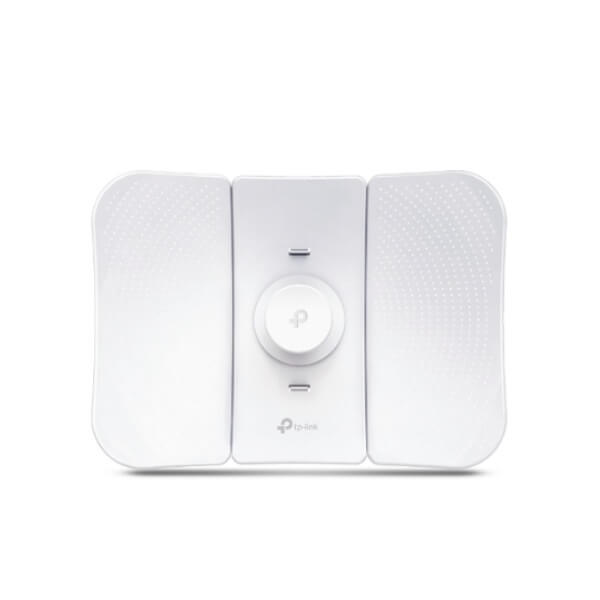

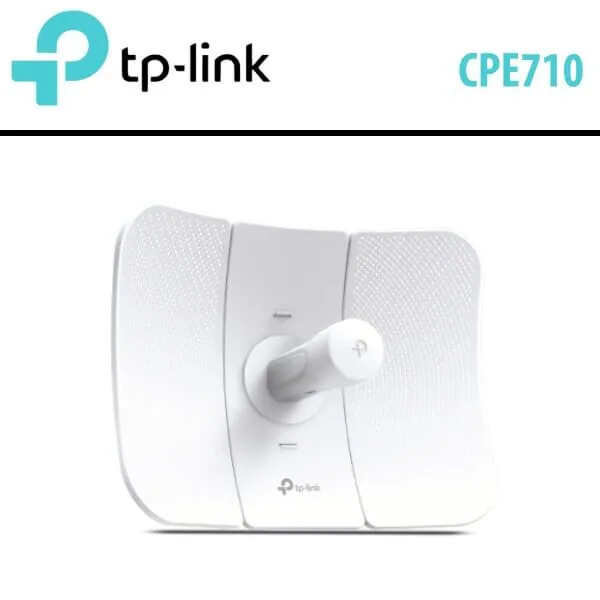

Tplink CPE710 Nigeria

Tplink CPE710 Nigeria Outdoor Radio enhances your business with reliable point-to-point connections between networks over long distances with 5 GHz Wireless-AC867 Outdoor CPE from TP-Link.

Category:

Description

Tplink CPE710 Outdoor Radio Nigeria

Tplink CPE710 Nigeria Outdoor Radio enhances your business with reliable point-to-point connections between networks over long distances with 5 GHz Wireless-AC867 Outdoor CPE from TP-Link. Featuring a powerful 23 dBi directional antenna with a dedicated metal reflector and 2 x 2 MIMO technology, this 802.11ac outdoor CPE is designed to cut through noise and transfer up to 867 Mb/s over the 5 GHz frequency.

Made primarily from PC stabilized plastic with wind and IP65 weatherproofing, Tplink CPE710 Nigeria can operate in temperatures between -40°F and 150°F. It also has 15kV ESD and 6kV lightning protection. The snap-lock design and included three-axis pole-mounting kit make for quick installation. Tplink CPE710 Nigeria Outdoor Radio is powered via passive PoE through its Gigabit Ethernet port and includes a convenient PoE adapter. Configure, manage, and monitor your network using the Pharos Control centralized system.

Features

  • 11ac for up to 867Mbps on 5GHz wireless data rate
  • 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
  • Excellent beam directivity, improved latency and noise cancellation
  • Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
  • Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
  • Pharos Control gives administrators a free, centralized management system
  • Passive PoE supports to allow flexible deployment and convenient installation

Professional-Standard 23 dBi Directional Antenna for Long-range Wireless Transmission

With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, Tplink CPE710 Nigeria Outdoor Radio provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.

Stable Structural Design and Flexible Installation

  • Snap-lock parts make assembly simple and convenient
  • Pole mount kits and the freedom of three-axis alignment facilitate flexible installation
  • Sturdy design ensures stability in windy conditions

Pharos Control – Centralized Management System

Tplink CPE710 Nigeria Outdoor Radio comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS – provides an alternative management method and allows professionals to access more detailed configurations.

Compact and Lightweight Packaging

Tplink CPE710 Nigeria Outdoor Radio comes in small and lightweight boxes benefit shipping, logistics, and retail.

Specifications

HARDWARE FEATURES
Processor Qualcomm 750MHz CPU, MIPS 74Kc
Memory 128 MB DDR2 RAM, 16 MB Flash
Interface
  • 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
  • 1 Reset Button
Power Supply
  • Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
  • Voltage range : 16-27V DC
Dimensions ( W x D x H ) 14.4 x 11.0 x 8.1 in.
(366 x 280 x 207 mm)
Antenna Gain 23 dBi
Antenna Beamwidth 9° (Azimuth)/7° (Elevation)
Protection
  • 15 KV ESD Protection
  • 6 KV Lightning Protection
Enclosure
  • Material : Outdoor PC stabilized plastic
  • Weatherproof : IP65 water and dust proof design
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac
Wireless Speeds
  • Up to 867 Mbps (80 MHz, Dynamic)
  • Up to 400 Mbps (40 MHz, Dynamic)
  • Up to 173.4 Mbps (20 MHz, Dynamic)
Frequency 5.15–5.85 GHz
Note : Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Transmit Power Max. 27 dBm (Adjustable power by 1dBm)
SOFTWARE FEATURES
Network Configuration
  • WAN : Static/ Dynamic/ PPPoE
  • LAN : Static/ Dynamic/ DHCP
  • Forwarding : ALG/ UPnP/ Virtual Server/ Port Trigger
  • Security : SPI Firewall/ Ping Forbidden/ DoS Protection
  • Access Control
  • Static Routing
  • Bandwidth Control
  • IP & MAC Binding
Wireless Configurations
  • Selectable channel width : 20, 40 or 80MHz
  • Automatic Wi-Fi channel selection
  • RF transmit power adjustment in 1 dB step
  • Dynamic Frequency Selection (DFS)
  • WDS Enable/ Disable
  • Security : WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption,
  • SSID broadcast enable/ disable
  • Multi-SSID with VLAN tagging in AP mode
  • Distance/ ACK timeout setting
  • Wireless MAC address filter
  • Wireless advanced features :
  • Beacon interval, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, short GI, Wi-Fi multimedia
  • Long range point-to-point
Management
  • Discovery and Remote Management with Pharos Control (Windows)
  • HTTP/ HTTPS Web-based management
  • System log
  • SNMP agent (v2c)
  • Ping watchdog
  • Dynamic DNS
  • SSH server
System Tools
  • Indicators : Signal Strength, Noise, Transmit CCQ, CPU, and Memory usage
  • Monitors : Throughput, Stations, Interfaces, ARP, Routes, WAN, and DHCP
  • Spectrum Analyzer
  • Speed Test
  • Ping
  • Traceroute
  • Antenna Alignment
System-level Optimizations Optimized IGMP Snooping / Proxy for multicast applications
POE ADAPTER FEATURES
Dimensions(W x D x H) 3.3 x 1.7 x 1.2 in.
(85 × 44 × 30 mm)
Interfaces
  • 1 AC Jack with Earth Ground
  • 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
  • 1× 10/100/1000 Mbps Shielded Ethernet Port (Data)
Button Remote Reset Button
Power Status LEDs Green
Input 100-240VAC, 50/60Hz
Output 24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency > 84.29%
Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
OTHERS
Certification CE, FCC, RoHS, IP65
Package Contents
  • Outdoor Wireless CPE
  • 24V 0.5A Passive PoE Adapter
  • Pole Mounting Kits
  • AC Power Cord
  • Installation Guide
Environment
  • Operating Temperature : -40℃~70℃ (-40℉~158℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~95% non-condensing



Datasheet Download
