Tplink EAP110-Outdoor Nigeria

Rating

Tplink EAP110-Outdoor Nigeria

Tplink EAP110-Outdoor Nigeria N300 Wireless N Outdoor Access is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Description

Tplink EAP110-Outdoor Access Point Nigeria

Tplink EAP110-Outdoor Nigeria N300 Wireless N Outdoor Access is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands. With high transmission power and two high-gain omnidirectional antennas, EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters in outdoor settings. The Tplink EAP110-Outdoor Nigeria can be easily installed to a pole or on a wall with the mounting kits provided.

Tplink EAP110-Outdoor Nigeria features AC1200 Wave 2 with Mesh Technology for Unlimited Business Wi-Fi is a wireless MU-MIMO Gigabit indoor and outdoor access point. EAP225-Outdoor supports simultaneous dual band speed of up to 1200Mbps. Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, Tplink EAP225 Nigeria can communicate with multiple clients at the same time which making it ideal for high density environment.

Features

  • Built for outdoor Wi-Fi applications
  • Up to 300Mbps1 Wi-Fi with 2×2 MIMO technology
  • High transmission power and high gain antennas provide a long-range coverage area
  • Durable, weatherproof enclosure to withstand fair and foul weather
  • Passive PoE (Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
  • Auranet Controller Software lets administrators easily manage hundreds of EAPs
  • Captive portal provides a convenient method for guest authentication
  • Supports management vlan for an enhanced network management

Excellent Hardware Designs

With special design of its antenna, appearance, power options and installation methods, Tplink EAP110-Outdoor Nigeria can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas

Tplink EAP110-Outdoor Nigeria is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Wi-Fi That Goes the Distance

With high transmission power and two high-gain omnidirectional antennas,
EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters in outdoor settings.

Specially Designed Weatherproof Enclosure for Outdoor Environment

Tplink EAP110-Outdoor Nigeria is rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

Efficient Centralized Network Management

With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location.  Making the network management efficient and intuitive.

Specifications

HARDWARE FEATURES

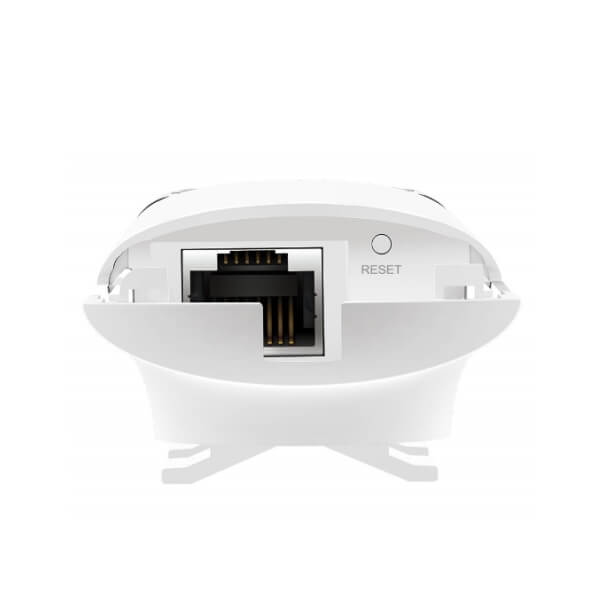

Interface 1 × Fast Ethernet (RJ-45) Port
(Support Passive PoE)
Button Reset
Power Supply 24V Passive PoE
(+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 3.1 W
Dimensions ( W x D x H ) 8.2 × 3.7 × 1.7 in.
(209 × 95 × 42.6 mm)
Antenna Type 2 × 3dBi External Omni waterproof
Weatherproof Enclosure IP65
Mounting Pole or wall mounting (mounting kit included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11n/g/b
Frequency 2.4GHz
Signal Rate
  • 11n : Up to 300Mbps*
  • 11g : Up to 54Mbps*
  • 11b : Up to 11Mbps*
Transmit Power < 27dBm
Wireless Functions
  • Multiple SSIDs (Up to 8 SSIDs)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (adjustable on 1 dBm step)
  • QoS (WMM)
  • Load Balance
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID, AP, and Client
Wireless Security
  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • 64/128/152-bit WEP / WPA / WPA2-Enterprise,
  • WPA-PSK / WPA2-PSK
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Local and Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification FCC, RoHS
Package Contents
  • 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor
  • Passive PoE Adapter
  • Power Cord
  • Mounting Kit
  • Waterproof Rubber Insert
  • Waterproof Antennas
  • Installation Guide
Environment
  • Operating Temperature : -30℃~65℃ (-22℉~149℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing



Datasheet Download
