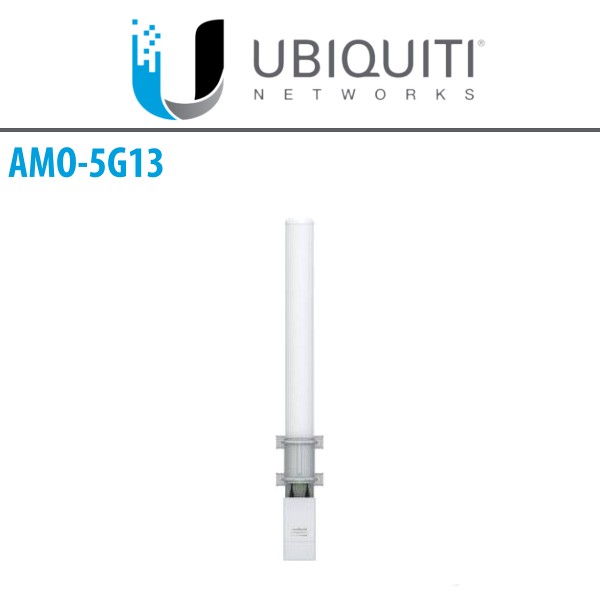

Ubiquiti AMO-5G13 Nigeria

The Ubiquiti AMO‑5G13 Nigeria is a 5GHz 13dBi carrier-class 2×2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately). Pair the airMAX^® Omni Antenna with a Rocket™ M Base Station for 360° coverage in Point-to-MultiPoint (PtMP) networks.

Description

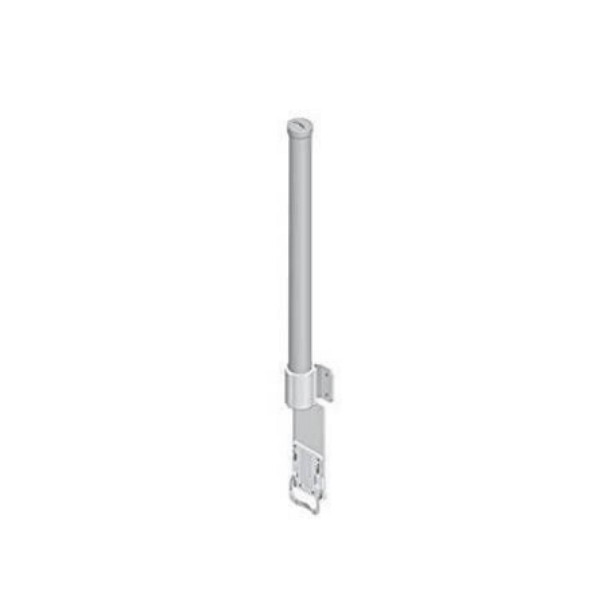

Ubiquiti AMO-5G13 Omni Antenna Nigeria

The Ubiquiti AMO-5G13 Nigeria is a 5 GHz, 13 dBi airMAX Omni antenna that provides powerful 360° coverage, 2×2 MIMO performance in Line‑of‑Sight (LoS) or Non‑Line‑of‑Sight (NLoS) applications. Every airMAX Omni antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Omni Antenna for your application.

Features

Breakthrough 2×2, Dual-Polarity Design – AMO-5G13 Nigeria antennas are the first of their kind to feature a patented, dual-polarity omni design.
Powerful Omnidirectional Coverage – the Ubiquiti airMAX – AMO-5G13 Nigeria provides 360° coverage, 2×2 MIMO performance in Line-of-Sight (LOS) or Non-Line-of-Sight (NLOS) applications.
Industrial-Strength Construction – the AMO-5G13 Nigeria is designed with robust mechanical design for outdoor application use.
Plug and Play Integration – Every airMAX – AMO-5G13 Nigeria has a built-in Rocket^™ mount, so no tools are needed to install the Rocket Base Station.

Specifications

Dimensions*	799 x 90 x 65 mm (31.46 x 3.54 x 2.56″)
Weight*	0.82 kg (1.81 lb)
Frequency Range	5.45 – 5.85 GHz
Gain	13 dBi
Elevation Beamwidth	7°
Max VSWR	1.5:1
Downtilt	2°
Wind Survivability	200 km/h (125 mph)
Wind Loading	84.52 N @ 200 km/h (19 lbf @ 125 mph)
Polarization	Dual-Linear
Cross-pol Isolation	25 dB min.
ETSI Specification	EN 302 326 DN2
