Yealink VC200E Nigeria


Yealink VC200E Nigeria

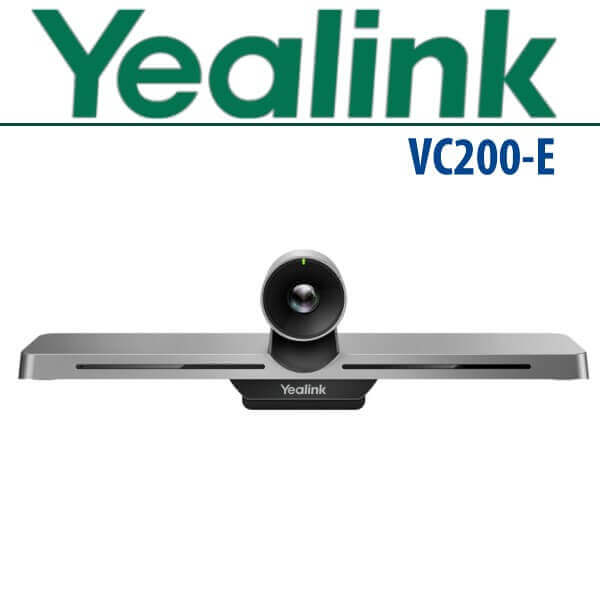

Yealink VC200E Nigeria is Video conferencing terminal for small meeting rooms. With controlled video camera with electronic (ePTZ) movement function: tilt, pan, zoom.


Yealink VC200E Video Conferencing Endpoint Nigeria

Yealink VC200E Nigeria is Video conferencing terminal for small meeting rooms. With controlled video camera with electronic (ePTZ) movement function : tilt, pan, zoom. Video capture clarity up to 4K (4096×3072 pixels). Yealink VC200E Nigeria features all-in-one design : a codec with a built-in video camera and an array of 6 microphones that form a wide-angle voice capture area up to 5 meters away from the speaker. Yealink VC200E Nigeria has support for recording video conferences to a USB storage device. You can choose from adapters for wired VCH50 / VCH51 or wireless WPP20 content transfer. Compatible with 3rd party solutions via SIP and H.323 protocols, in combination with VCH51, supports BYOD mode for user communications applications.


Ultra HD 4K Camera and Super-Wide Angle Lens

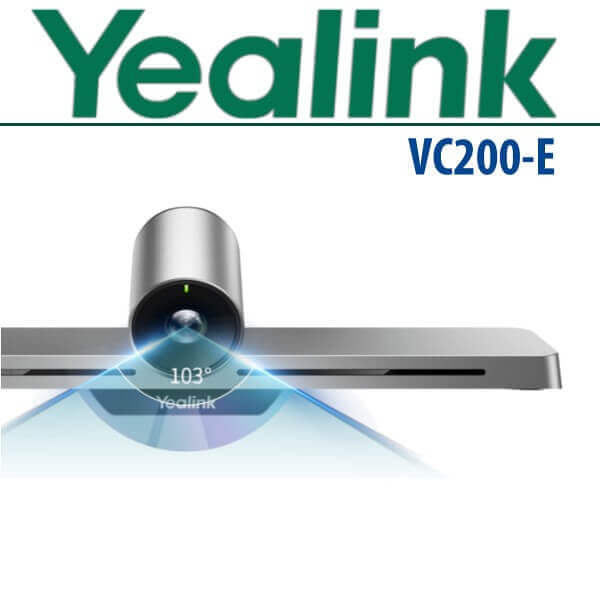

The Yealink VC200E Nigeria Video Conferencing Endpoint is equipped with an Ultra HD 4K camera which supports 4x digital zoom power. It pans, tilts, zooms effectively to capture every little detail of the conference proceedings in ultra clear resolution. Its super-wide 103° horizontal field of view allows you to easily cover every seat at the table wholly without adjusting the camera. Featuring H.265/HEVC video codes, just with the minimum 512kbps, VC200E can realize 1080P HD video calls. Moreover, through Yealink anti-packet loss technology, Yealink VC200E Nigeria can resist up to 30% video and audio packet loss which guarantees smooth video communication.

Clearer Audio with Six Beamforming Microphone Arrays

Yealink VC200E Nigeria Video Conferencing Endpoint uses the most advanced Beamforming algorithm in its 6 built-in microphone arrays to deliver crystal clear sounds in small and huddle meeting rooms. Other Artificial Intelligence (AI) technologies such as directed voice pickup and voice identification and comparison ensure that every conference participant can clearly hear and be heard. Yealink Noise Proof Technology blocks out surrounding noises thus enabling the conference participants to concentrate more and engage in the meeting effectively.

The H.265/HEVC protocol

Yealink VC200E Nigeria is implemented on a specialized processor, effectively compresses and processes the video image, protecting it from instabilities in communication channels. 1080p video transmission is provided in a bandwidth of 512 kbps and is protected from loss of up to 30% of video packets.

Advance Technology

Wireless technologies for transferring content, audio and video greatly facilitate the deployment and use of equipment.

Built-In Bluetooth Connectivity

The Yealink VC200E Nigeria Video Conferencing Endpoint uses integrated Bluetooth 4.2 + EDR to connect with Bluetooth speakers/ microphones, and keyboards so as to facilitate smooth data exchange.


System Components :

  • Monoblock VC200E
  • Remote control VCR11
  • PoE injector

Camera :

  • 4K Ultra HD Camera
  • Full HD video resolution (1920×1080 30fps)
  • Zoom 4x (digital) ePTZ
  • Horizontal field of view 103°

Video resolution :

  • 1080p (1920×1080)
  • 720p (1280×720)
  • W448p(768×448)
  • WQVGA(400×240)
  • 4CIF (704×576)
  • CIF (352×268)

Video protocols and interaction with the network :

  • H.265/HEVC, H.264 High Profile, H.264, H.263
  • Dynamic adaptive bandwidth tuning
  • Forward Error Correction (FEC), up to 30% video packet loss protection
  • Automatic priority of content and voice quality assurance

Microphones :

  • Built-in array of 6 microphones
  • Capture up to 5 meters
  • Capture angle 150°

Audio processing protocols :

  • Opus support (8-48 kHz)
  • Support G.722.1C (14kHz)
  • Support G.722.1 (7 kHz)
  • Support G.711 (3.4 kHz)
  • Echo Cancellation (AEC)
  • Automatic microphone gain control (AGC)
  • Yealink Noise Proof Technology
  • Comfort Noise Generator (CNG)
  • PLC, AJB, De-Rerb

Operating system :

  • Android 7.1

Functions :

  • Support 1080p30 video + 1080p30 content
  • Supported layouts :- picture in picture
    • participant’s image in full screen
  • Audio and video recording, playback
  • Recording Snapshots (Screenshots)
  • DND, call statistics
  • Auto answer off microphone and call waiting
  • Virtual room password
  • Virtual keyboard
  • Local book : 500 contacts
  • LDAP
  • Call History : All/Missed/Received/Dialled
  • Hosting a 5-Way Audio Conference

Support for communication protocols :

  • H.323 (1 account), SIP (1 account)
  • H.239, BFCP
  • FECC : H.224/H.281, Sony VISCA and PELCO D/P
  • H.323 protocols : H.245, H.225, H.235, H.241

Network and Security :

  • Built-in Wi-Fi (2.4/5 GHz)
  • Integrated Bluetooth support
  • TCP/IP (IPv4/IPv6), DHCP and Static Networking
  • HTTP/HTTPS web server
  • RS232/HTTP API for integration with control systems
  • TLS, AES encryption
  • SRTP (Attention! Products intended for the countries-participants of the Customs Union do not have this functionality!)
  • QoS : 802.1p/Q, Diffserv
  • Attack protection
  • Network Diagnostics : Ping and Trace Route
  • Time and date synchronization via SNTP
  • Built-in certificate

NAT and firewall :

  • NAT configuration (manual and automatic)
  • Intelligent NAT Traversal
  • OpenVPN (Attention! Products intended for countries participating in the Customs Union do not have this functionality!)
  • H.460 support

Control :

  • Web Based Configuration/Remote Control/Autoprovision
  • Software update, factory reset
  • Export and import of configuration files
  • Export system log and PCAP Trace

Interfaces :

  • 1 x HDMI output
  • 1 x RJ45 for CP960 conference phone or VCH breakout box
  • 1 x RJ45 Ethernet port 10/100 Mbps
  • PoE support (IEEE 802.3af)
  • 2 x USB 2.0
  • 1 x Line-out (3.5mm)
  • Slot for Kensington lock
  • Reset Button

Physical characteristics :

  • Consumption : standby <6.5W, working 7W, max. 8 W.
  • Size (W*D*H) :
  • Codec : 300*70*87mm
  • Remote control : 190*55*24mm
  • Operating Humidity : 10~95%
  • Operating temperature : 0~40˚C
