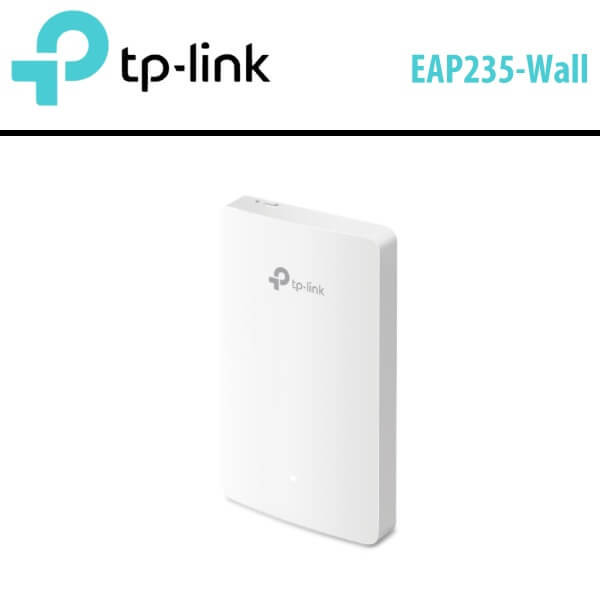

Tplink EAP235-Wall Nigeria

Rating

Tplink EAP235-Wall Nigeria

Tplink EAP235-Wall Nigeria features Omada AC1200 PoE-Compliant Wireless Gigabit Wall Plate Access Point. Compatible with 86mm junction boxes with PoE support, this wireless dual-band wall-plate mounting access point is designed for offices and hotel rooms.

Description

Tplink EAP235-Wall Access Point Nigeria

Tplink EAP235-Wall Nigeria features Omada AC1200 PoE-Compliant Wireless Gigabit Wall Plate Access Point. Compatible with 86mm junction boxes with PoE support, this wireless dual-band wall-plate mounting access point measures less than an inch thick to unobtrusively blend in with environments such as offices and hotel rooms. Tplink EAP235-Wall Nigeria includes high-powered internal antennas that deliver a manximum data transfer rate of up to 867 Mb/s at 5 GHz and 300 Mb/s at 2.4 GHz to help ensure far reaching and stable wireless coverage. There are three 1000 Mb/s access Ethernet ports and one uplink 802.3af/at PoE port. The uplink port powers the access point while a pass-through port delivers power to IP phones, cameras, intercoms, and more. Your wireless network is protected with enterprise-class security and you can manage it from almost anywhere using the Omada cloud platform.

Features

A Dedicated Private WiFi Network in Each Room

An EAP in each room allows guests to enjoy their own private WiFi network that is fast and delivers a strong corner to corner coverage.

Superior WiFi Speeds and Long-Range Coverage

Tplink EAP235-Wall Nigeria provides boosted WiFi speeds up to 1200 Mbps with Beamforming. Experience long-range coverage with advanced wireless technologies like Load Balancing and Band Steering optimizing the whole network to improve performance and efficiency.

Absolute Thinnest Design

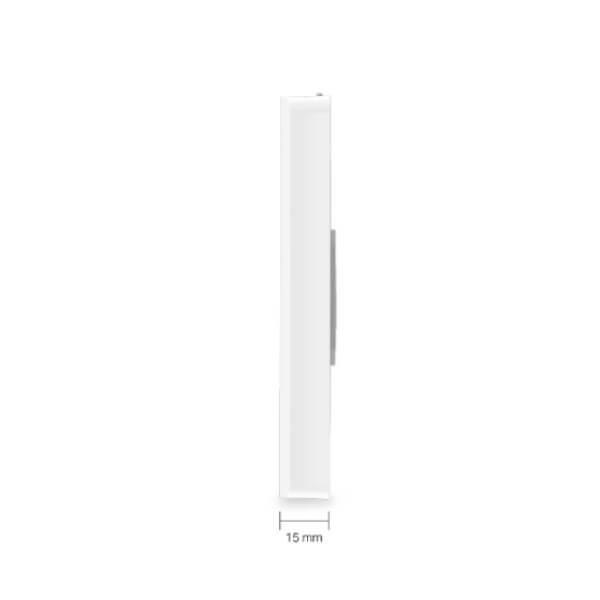

The Tplink EAP235-Wall Nigeria is the thinnest wall plate AP available – only 15 mm – featuring a sleek, minimalistic appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices, and school dormitories, EAP235-Wall delivers powerful WiFi without clashing with the room.

Quick, Simplified Installation

Tplink EAP235-Wall Nigeria is easy to install. So, there is no need to spend more time and money hiring a professional.

Full Gigabit Ports to Bridge Network

Tplink EAP235-Wall Nigeria is equipped with four Gigabit data ports (1x uplink + 3x downlink) and one downlink port with PoE pass-through to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.

Effortless Deployment with PoE

With 802.3af/802.3at Power over Ethernet (PoE) supported, there is no need to install additional wiring. Simply plug in the existing Ethernet cables and you’re ready to go.

Omada SDN with Flexible Management and Cloud Access

Omada SDN integrates network devices including gateways, APs & switches w/ multiple control options offered – Hardware controller, Software Controller & Cloud-based Controller*. Centralized cloud allows for remote management of the entire network via a single interface anywhere, anytime.

Specifications

HARDWARE FEATURES
Interface
  • Uplink : 1× 10/100/1000 Mbps Ethernet Port
  • Downlink : 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.)
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/802.3at PoE
Power Consumption 9.8 watts /24.4 watts (PoE Out Included)
Dimensions 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Antenna 2 Dual-Band Antennas

  • 2.4 GHz : 2× 4 dBi
  • 5 GHz : 2× 4 dBi
Mounting Wall Plate Mounting
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4 GHz and 5 GHz
Signal Rate
  • 5 GHz : Up to 867 Mbps
  • 2.4 GHz : Up to 300 Mbps
Wireless Functions
  • 16 SSIDs (Up to 8 SSIDs on each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • MU-MIMO
  • Band Steering
  • Beamforming
  • Load Balance
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
Wireless Security
  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Local LAN port based VLAN
  • Rogue AP Detection
  • 802.1X Support
  • 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Transmission Power CE :

  • ≤20 dBm (2.4 GHz, EIRP)
  • ≤23 dBm (5 GHz, EIRP)FCC :
  • ≤21 dBm (2.4 GHz)
  • ≤21 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall
  • Installation Guide
  • Mounting Screw
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment
  • Operating Temperature : 0–40 ℃ (32–104 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing



Datasheet Download
