Tplink MC210CS Nigeria

The Tplink MC210CS Nigeria is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards

Category:

Description

Tplink MC210CS Media Converter Nigeria

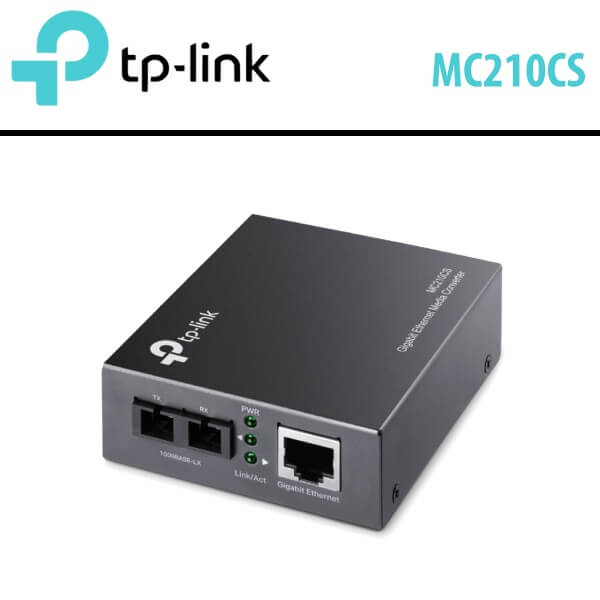

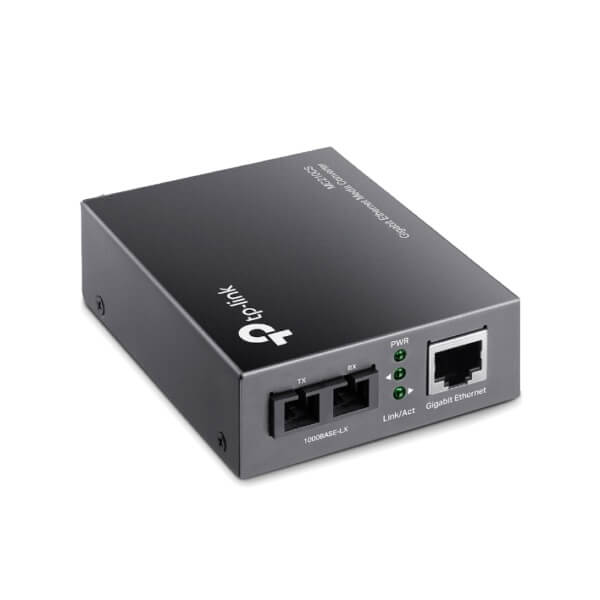

The Tplink MC210CS Nigeria is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the Tplink MC210CS Nigeria is designed for use with single-mode fiber cable utilizing the SC-Type connector. The Tplink MC210CS Nigeria supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Features

  • 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Complies with IEEE 802.3ab and IEEE 802.3z
  • Extends fiber distance up to 20km

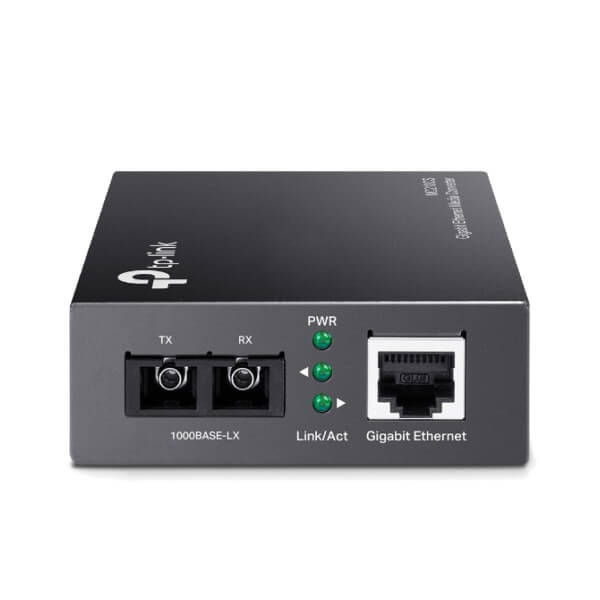

Other features of this module include the ability to be used as a stand-alone device (no chassis required) or with TP-Link´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The Tplink MC210CS Nigeria will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.

Specifications

MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Basic Function
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Extends fiber distance up to 20km
Ports
  • 1× 1000M SC/UPC port
  • 1× 10/100/1000M RJ45 port (Auto MDI/MDIX)
Wave Length 1310nm
Network Media 1000BASE-LX Single-mode Fiber
Network Media 1000BASE-T
  • UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply External Power Adapter
Max Power Consumption 1.8W
Safety & Emission FCC, CE, RoHS
Package Contents
  • Media Converter MC210CS
  • Power Adapter
  • Installation Guide
Environment
  • Operating Temperature : 0℃~50℃ (32℉~122℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
