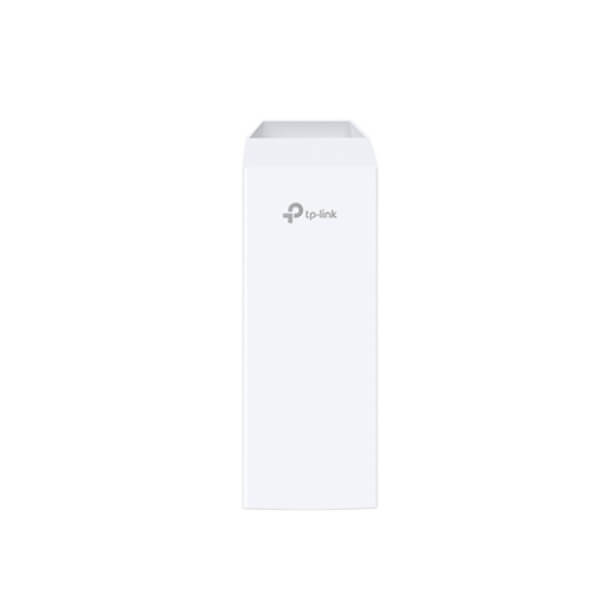

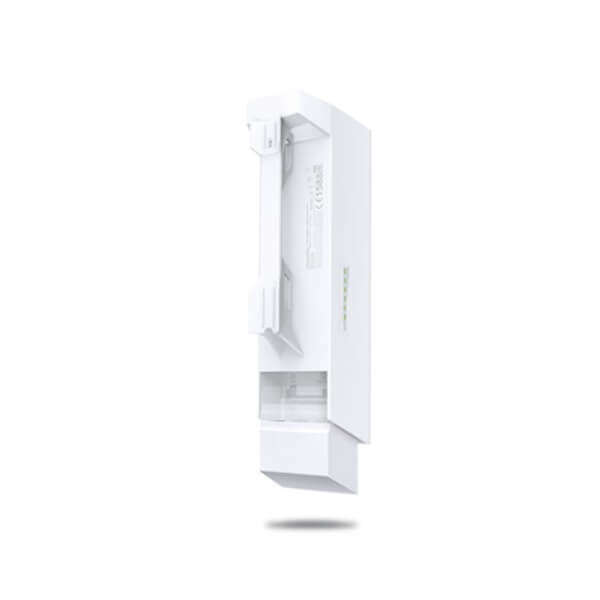

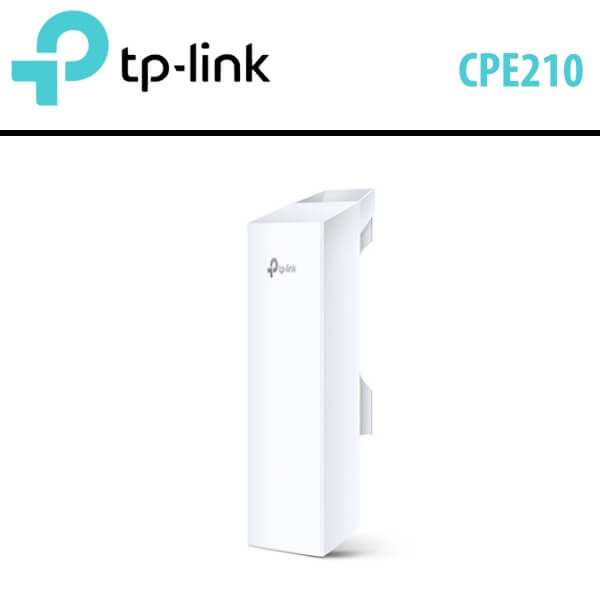

Tplink CPE210 Nigeria

Tplink CPE210 Nigeria is 2.4GHz 300Mbps 9dBi Outdoor CPE, featuring dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications.

Category:

Description

Tplink CPE210 Outdoor Radio Nigeria

Tplink CPE210 Nigeria is 2.4GHz 300Mbps 9dBi Outdoor CPE, featuring dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications.  Professional performance, coupled with user-friendly design, makes CPE210 an ideal. Tplink CPE210 Nigeria also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC – Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

Features

  • Built-in 9dBi 2×2 dual-polarized directional MIMO antenna
  • Adjustable transmission power from 0 to 27dBm/500mw
  • System-level optimizations for more than 5km long range wireless transmission
  • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
  • Centralized Management System – Pharos Control
  • AP / Client / AP Router / AP Client Router (WISP) operation modes
  • Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

Enterprise Hardware

With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, Tplink CPE210 Nigeria is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).

Advanced Antenna System

Tplink CPE210 Nigeria has Built-in High Gain Dual-Polarized Antenna. Dedicated metal reflector ensures higher gain and lower noise interference

5km+ Wireless Data Transmission

Tplink CPE210 Nigeria is specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.

P-LINK MAXtream TDMA Technology

As network scale increases, wireless competition and collisions among CPEs and base stations will be
so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
experience. To mitigate these effects, Tplink CPE210 Nigeria uses MAXtream TDMA Technology.

Pharos Control – Centralized Management System

Tplink CPE210 Nigeria also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC – Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

Specifications

HARDWARE FEATURES
Processor Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM, 8MB Flash
Interface
  • 1 10/100Mbps Shielded Ethernet Port (Passive PoE in)
  • 1 Grounding Terminal
  • 1 Reset Button
Power Supply
  • Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
  • Voltage range : 16-27VDC
Power Consumption 10.5 Watts Max
Note : When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H ) 8.8 x 3.1 x 2.4 in.
Antenna Type
  • Built-in 9dBi 2×2 Dual-polarized Directional Antenna
  • Beam Width : 65° (H-Plane) / 35° (E-Plane)
Protection
  • 15KV ESD Protection
  • 6KV Lightning Protection
Enclosure
  • Outdoor ASA stabilized plastic material
  • IPX5 waterproof Certification
WIRELESS FEATURES
Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds
  • Up to 300Mbps (40MHz,Dynamic)
  • Up to 144.4Mbps (20MHz,Dynamic)
  • Up to 72.2Mbps (10MHz,Dynamic)
  • Up to 36.1Mbps (5MHz,Dynamic)
Frequency 2.4~2.483GHz
Transmission Power 27dBm/500mw (1dBm step adjustable)
SOFTWARE FEATURES
Wireless Configurations
  • Pharos MAXtream TDMA Technology
  • 802.11b/g/n modes
  • Selectable Channel Width : 5/10/20/40MHz
  • Automatic Channel Selection
  • Transmission Power Control
  • Dynamic Frequency Selection (DFS)
  • WDS Enable/Disable
  • Security : WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
  • SSID Broadcast Enable/Disable
  • Multi-SSID with VLAN Tagging (AP mode only)
  • Distance/ACK Timeout Setting
  • Wireless MAC Address Filter
  • Wireless Advanced :
    • Beacon Interval/RTS Threshold/Fragmentation
    • Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management
  • Discovery and Remote Management via Pharos Control application
  • HTTP/HTTPS Web-based management
  • System Log
  • SNMP Agent(v2c)
  • Ping Watch Dog
  • Dynamic DDNS
  • SSH Server
System Tools
  • Wireless Signal Quality Indicators :
  • Signal Strength/Noise/Transmit CCQ/CPU/Memory
  • Monitors : Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
  • Spectrum Analyzer
  • Speed Test
  • Ping
  • Traceroute
System-level Optimizations
  • Optimized IGMP Snooping/Proxy for multicast applications
  • Hardware watch dog
POE ADAPTER FEATURES
Dimensions(W x D x H) 4.3 x 2.2 x 1.3 in
Interfaces
  • 1 AC Jack with Earth Ground
  • 1 10/100Mbps Shielded Ethernet Port (Power + Data)
  • 1 10/100Mbps Shielded Ethernet Port (Data)
Button Remote Reset Button
Power Status LEDs Green
Input 100-240VAC, 50/60Hz
Output 24VDC, 0.6A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency > 80%
Certifications FCC
OTHERS
Certification FCC, RoHS, IPX5
Package Contents
  • Outdoor Wireless CPE
  • 24VDC Passive PoE Adapter
  • Pole Mounting Straps
  • AC Power Cord
  • Installation Guide
Environment
  • Operating Temperature : -40℃~70℃ (-40℉~158℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~95% non-condensing
