Tplink TL-SX3008F Nigeria

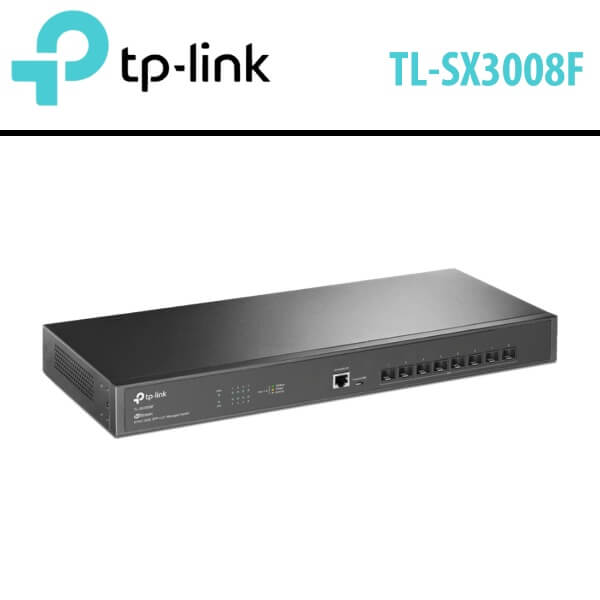

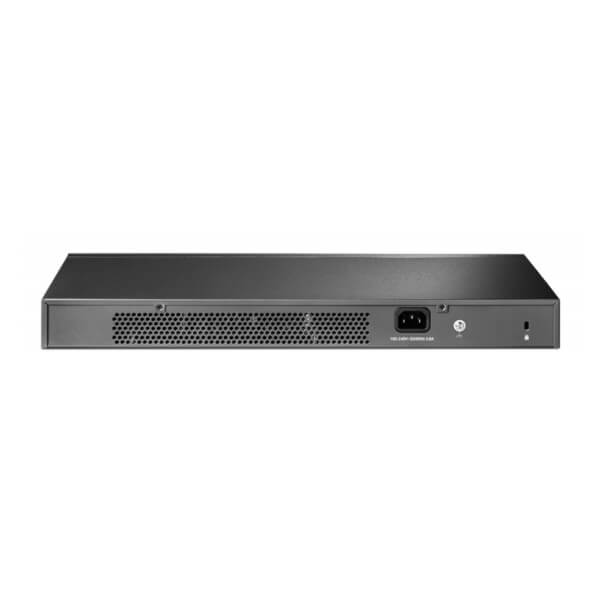

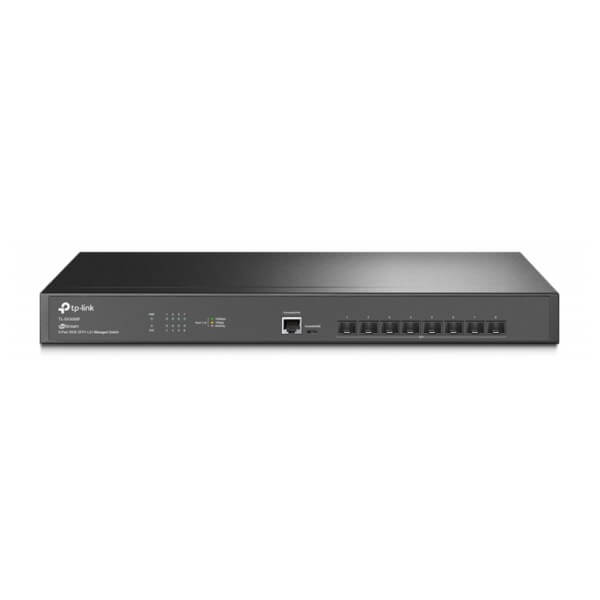

Tplink TL-SX3008F Nigeria is 8-Port SFP+ 10GE Managed Switch from TP-Link designed for a small office or large business to expand network capacity to handle a multitude of high-bandwidth applications.

Description

Tplink TL-SX3008F Managed Switch Nigeria

Tplink TL-SX3008F Nigeria is 8-Port SFP+ 10GE Managed Switch from TP-Link designed for a small office or large business to expand network capacity to handle a multitude of high-bandwidth applications. The managed switch features eight 10G SFP+ ports, supporting a 160 Gb/s switching capacity and 119.04 Mpps forwarding rate to deliver exceptionally fast and reliable data transfers over fiber connections to compatible devices such as network storage and servers. Tplink TL-SX3008F Nigeria provides a robust Layer 2 features include link aggregation for up to eight groups containing eight ports in addition to IGMP snooping and port mirroring. Your data is protected by a host of security features, including an Access Control List (ACL) and VLAN support. Use the Omada Software Defined Networking platform to manage your connected network devices remotely with the Omada app.

Features

Centralized Management

The Tplink TL-SX3008F Nigeria has centralized Omada Software Defined Networking (SDN) platform that integrates access points, switches, gateways, and other network devices to provide high efficiency, security, and reliability.

Omada App

Configure, manage, and monitor your network devices from almost anywhere in the world using your smartphone or tablet.

Access Control List

Tplink TL-SX3008F Nigeria allow or deny connected devices access to data with user-defined network rules.

Optimized Traffic

Configure the switch to prioritize voice and video traffic to help ensure clear calls and smooth media streaming.

VLAN Support

Group devices using VLAN to help improve network security and reduce data congestion.

Security Features

Tplink TL-SX3008F Nigeria protects your network from attacks and intrusions with IP-MAC-Port Binding, Access Control List, DoS Defend, Storm control, DHCP Snooping, 802.1x, Radius Authentication, and more.

ISP Features

Internet Service Providers benefit from features such as sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM, and Device Link Detection Protocol (DLDP) to quickly troubleshoot Ethernet links across the network.

IPv6 Support

Built-in IPv6 functionality such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, means that you won’t need to upgrade your hardware when you’re ready to set up a next generation network.

Quiet Operation

The Tplink TL-SX3008F Nigeria has metal chassis allowing the switch to operate silently while dissipating heat.

Specifications

HARDWARE FEATURES
Interface
  • 8× 10GE SFP+ Slots
  • 1× RJ45 Console Port
  • 1× Micro-USB Console Port
Fan Quantity Fanless
Power Supply 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting Rack Mountable
Max Power Consumption 15.46 W (220 V / 50 Hz)
Max Heat Dissipation 52.75 BTU/hr (220 V / 50 Hz)
PERFORMANCE
Switching Capacity 160 Gbps
Packet Forwarding Rate 119.04 Mpps
MAC Address Table 32 K
Packet Buffer Memory 16 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service
  • 8 priority queues
  • 802.1p CoS/DSCP priority
  • Queue scheduling
    • SP (Strict Priority)
    • WRR (Weighted Round Robin)
    • SP+WRR
  • Bandwidth Control
    • Port/Flow based Rating Limiting
  • Smoother Performance
  • Action for Flows
    • Mirror (to supported interface)
    • Redirect (to supported interface)
    • Rate Limit
    • QoS Remark
L2 and L2+ Features
  • Link Aggregation
    • static link aggregation
    • 802.3ad LACP
    • Up to 8 aggregation groups, containing 8 ports per group
  • Spanning Tree Protocol
    • 802.1d STP
    • 802.1w RSTP
    • 802.1s MSTP
    • STP Security : TC Protect, BPDU Filter, Root Protect
  • Loopback Detection
    • Port based
    • VLAN based
  • Flow Control
    • 802.3x Flow Control
    • HOL Blocking Prevention
  • Mirroring
    • Port Mirroring
    • CPU Mirroring
    • One-to-One
    • Many-to-One
    • Tx/Rx/Both
L2 Multicast
  • IGMP Snooping
    • IGMP v1/v2/v3 Snooping
    • Fast Leave
    • IGMP Snooping Querier
    • IGMP Authentication
  • IGMP Authentication
  • MLD Snooping
    • MLD v1/v2 Snooping
    • Fast Leave
    • MLD Snooping Querier
    • Static Group Config
    • Limited IP Multicast
  • MVR
  • Multicast Filtering : 256 profiles and 16 entries per profile
VLAN
  • VLAN Group
    • Max 4K VLAN Groups
  • 802.1Q Tagged VLAN
  • MAC VLAN : 30 Entries
  • Protocol VLAN : Protocol Template 16, Protocol VLAN 16
  • Private VLAN
  • GVRP
  • VLAN VPN (QinQ)
    • Port-Based QinQ
    • Selective QinQ
  • Voice VLAN
Access Control List
  • Time-based ACL
  • MAC ACL
    • Source MAC
    • Destination MAC
    • VLAN ID
    • User Priority
    • Ether Type
  • IP ACL
    • -Source IP
    • Destination IP
    • Fragment
    • IP Protocol
    • TCP Flag
    • TCP/UDP Port
    • DSCP/IP TOS
    • User Priority
  • Combined ACL
  • Packet Content ACL
  • IPv6 ACL
  • Policy
    • Mirroring
    • Redirect
    • Rate Limit
    • QoS Remark
  • ACL apply to Port/VLAN
Security
  • IP-MAC-Port Binding
    • 512 Entries
    • DHCP Snooping
    • ARP Inspection
    • IPv4 Source Guard : 100 Entries
  • IPv6-MAC-Port Binding
    • 512 Entries
    • DHCPv6 Snooping
    • ND Detection
    • IPv6 Source Guard : 100 Entries
  • DoS Defend
  • Static/Dynamic Port Security
    • Up to 64 MAC addresses per port
  • Broadcast/Multicast/Unicast Storm Control
    • kbps/ratio control mode
  • 802.1X
    • Port base authentication
    • Mac base authentication
    • VLAN Assignment
    • MAB
    • Guest VLAN
    • Support Radius authentication andaccountability
  • AAA (including TACACS+)
  • Port Isolation
  • Secure web management through HTTPS with SSLv3/TLS 1.2
  • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  • IP/Port/MAC based access control
IPv6
  • IPv6 Dual IPv4/IPv6
  • Multicast Listener Discovery (MLD) Snooping
  • IPv6 ACL
  • IPv6 Interface
  • Static IPv6 Routing
  • IPv6 neighbor discovery (ND)
  • Path maximum transmission unit (MTU) discovery
  • Internet Control Message Protocol (ICMP) version 6
  • TCPv6/UDPv6
  • IPv6 applications
    • DHCPv6 Client
    • Ping6
    • Tracert6
    • Telnet (v6)
    • IPv6 SNMP
    • IPv6 SSH
    • IPv6 SSL
    • Http/Https
    • IPv6 TFTP
L3 Features
  • 16 IPv4/IPv6 Interfaces
  • Static Routing
    • 48 static routes
  • Static ARP
    • 128 Static Entries
  • Proxy ARP
  • Gratuitous ARP
  • DHCP Server
  • DHCP Relay
    • DHCP Interface Relay
    • DHCP VLAN Relay
  • DHCP L2 Relay
Advanced Features
  • Automatic Device Discovery
  • Batch Configuration
  • Batch Firmware Upgrading
  • Intelligent Network Monitoring
  • Abnormal Event Warnings
  • Unified Configuration
  • Reboot Schedule
MIBs
  • MIB II (RFC1213)
  • Interface MIB (RFC2233)
  • Ethernet Interface MIB (RFC1643)
  • Bridge MIB (RFC1493)
  • P/Q-Bridge MIB (RFC2674)
  • RMON MIB (RFC2819)
  • RMON2 MIB (RFC2021)
  • Radius Accounting Client MIB (RFC2620)
  • Radius Authentication Client MIB (RFC2618)
  • Remote Ping, Traceroute MIB (RFC2925)
  • Support TP-Link private MIB
MANAGEMENT
Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
  • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features
  • Web-based GUI
  • Command Line Interface (CLI) through the console port, telnet
  • SNMP v1/v2c/v3
    • Trap/Inform
    • RMON (1,2,3,9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • 802.1ab LLDP/LLDP-MED
  • DHCP AutoInstall
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Cable Diagnostics
  • EEE
  • Password Recovery
  • SNTP
  • System Log
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • TL-SX3008F Switch
  • Power Cord
  • Quick Installation Guide
  • Rackmount Kit
  • Rubber Feet
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment
  • Operating Temperature : 0–45 ℃ (32–113 ℉);
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing





Datasheet Download
